Bergen Tunnels Rehabilitation

New Jersey Transit Authority (NJT)

The north tube of the partially brick-lined, 125-year-old Bergen Tunnel required rehabilitation to meet today’s clearance and safety requirements.

Tunnel Construction and Support Services:

Gall Zeidler Consultants provided consulting to the contractor for excavation and support requirements, portal redesign, as well as general support for submittals, materials selection, rehabilitation procedures, adapting the initial lining to the geology encountered, waterproofing system, and final lining adaptations.

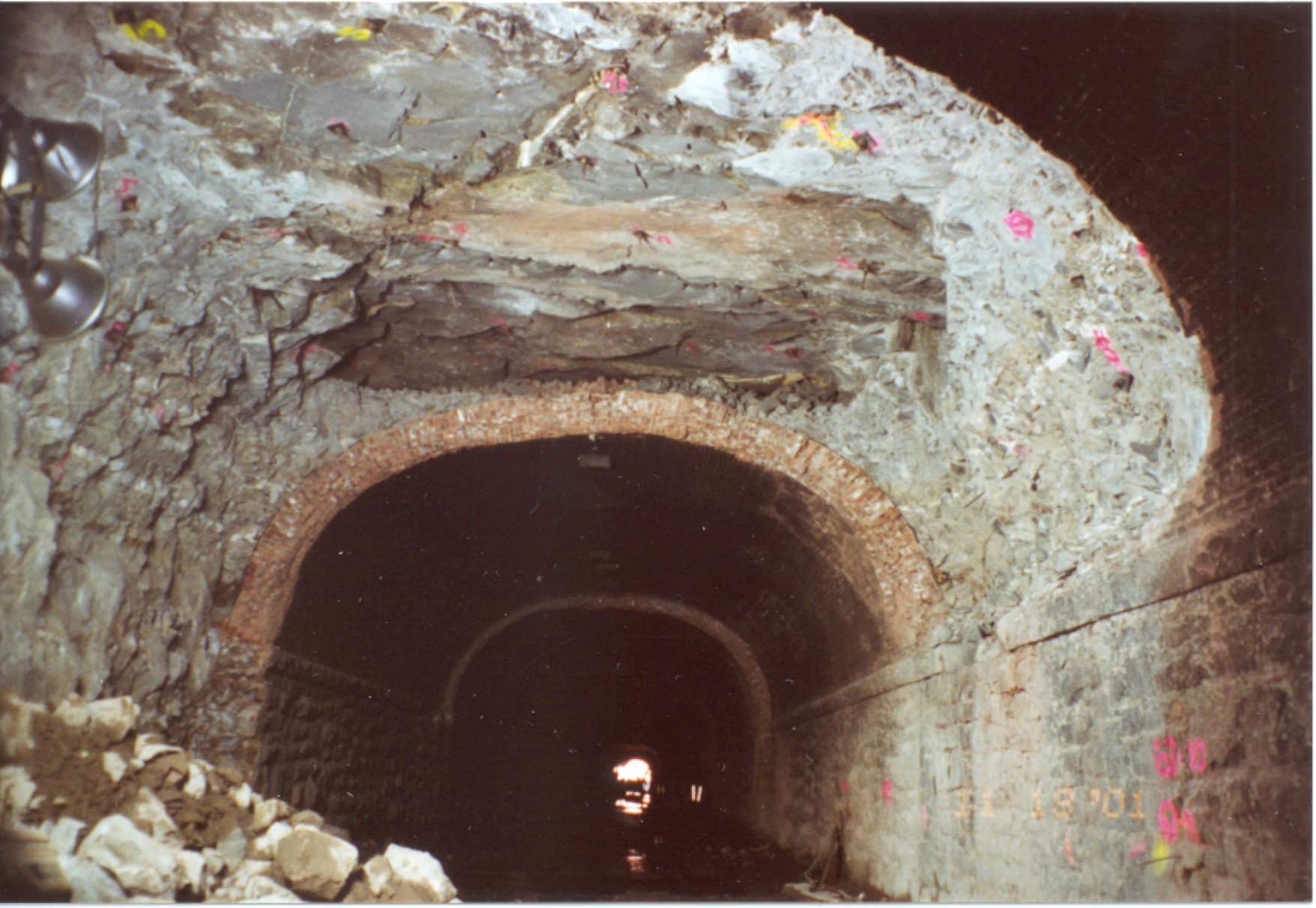

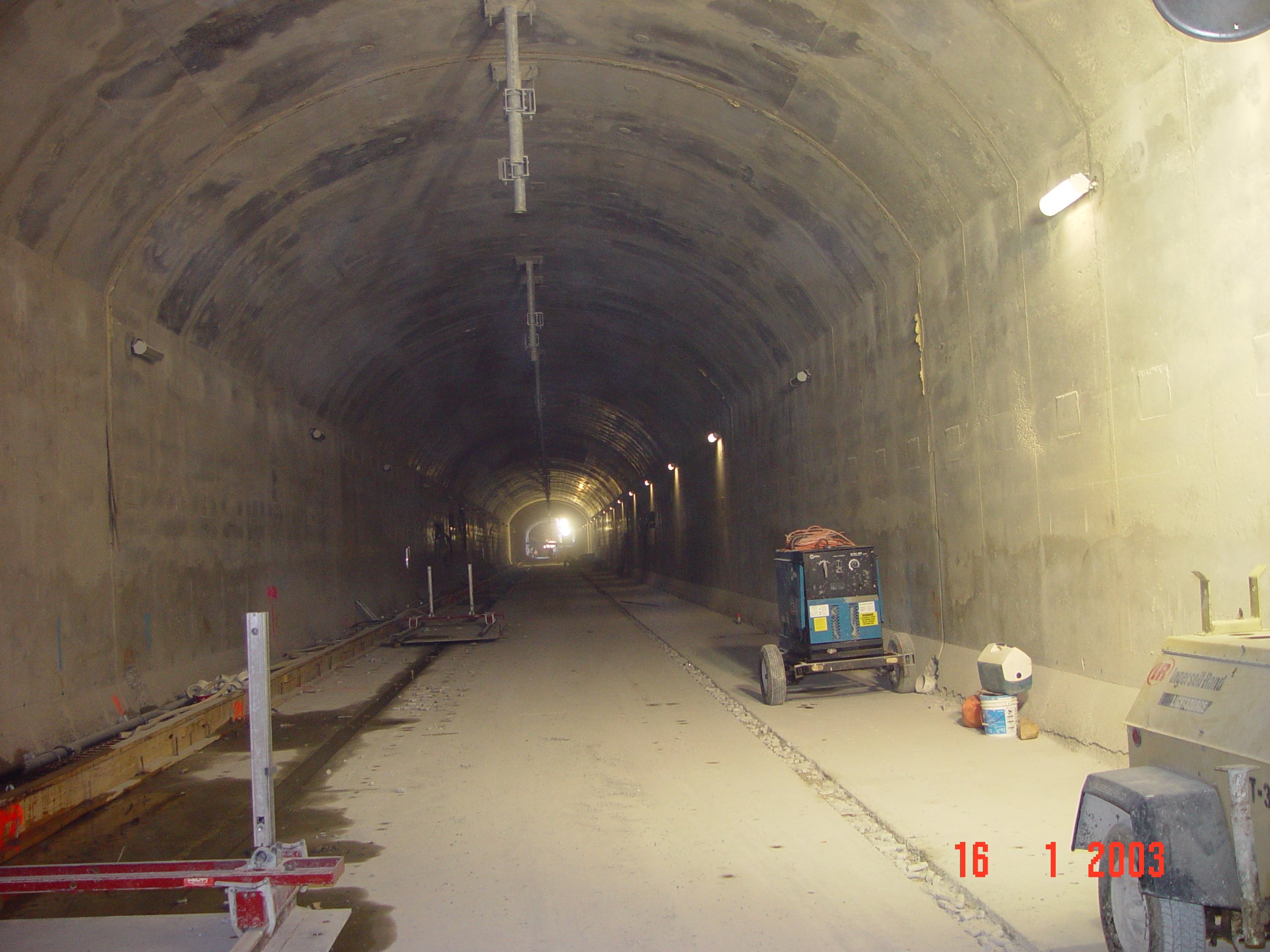

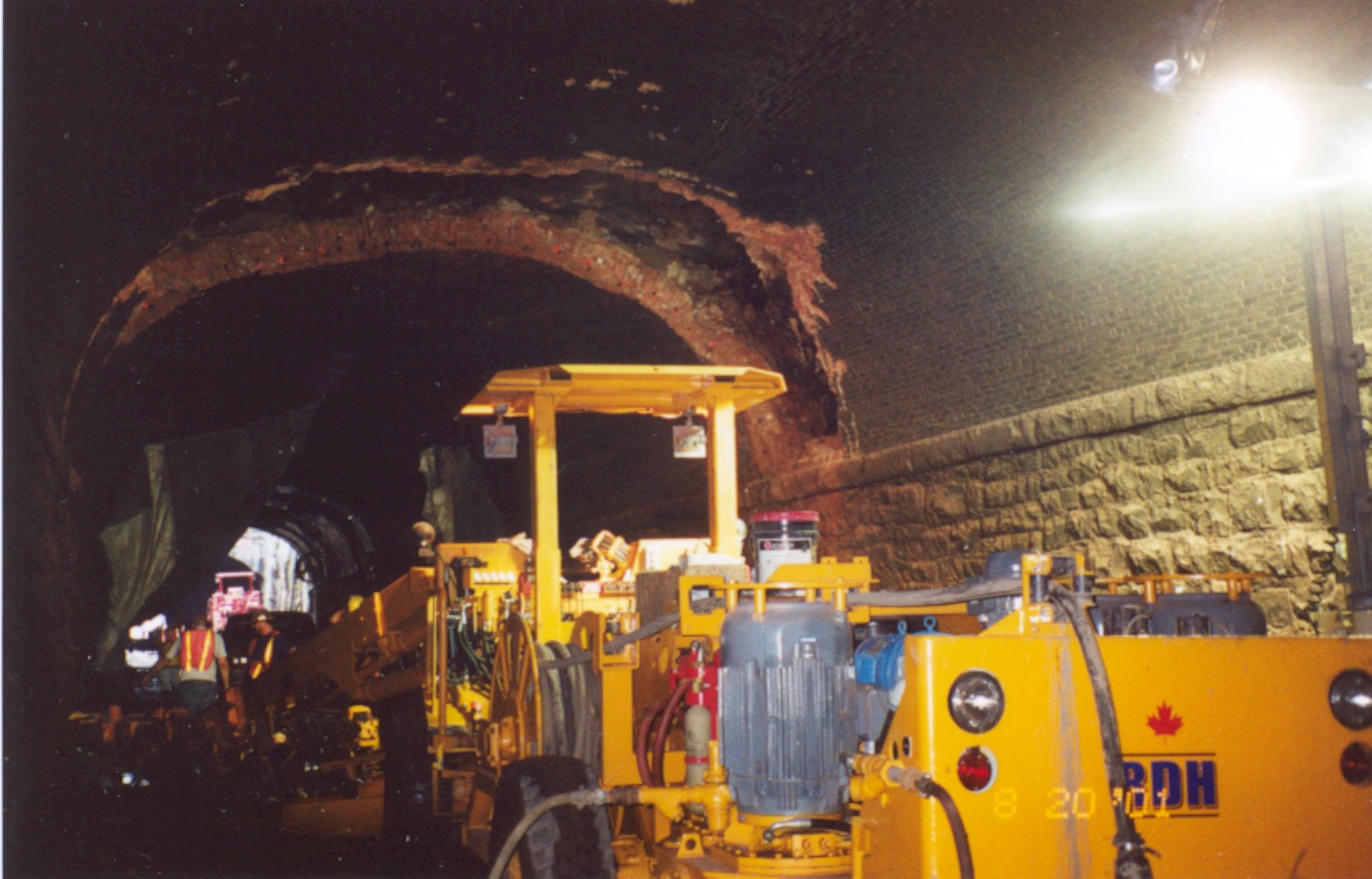

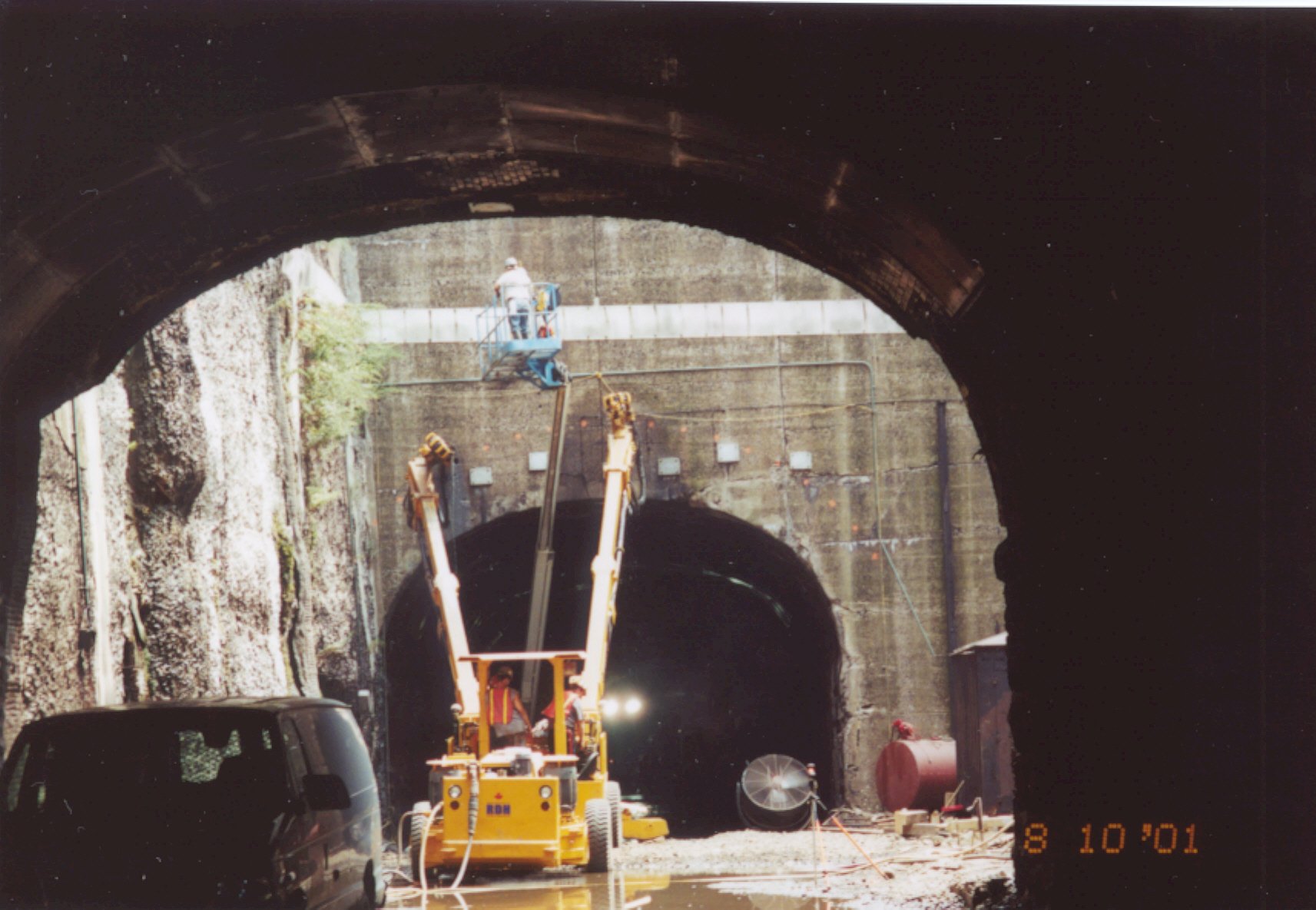

The project required stabilizing of two open cuts, stabilizing and backfilling five existing ventilation shafts, removing brick, enlarging the tunnel with drill-and-blast techniques, relining it with shotcrete, and installing a drained membrane waterproofing system and cast-in-place concrete final lining.

Location:

Jersey City, New Jersey

Date:

2001 – 2002

Structure:

Twin-Track Railway Tunnel

Length:

0.9 miles (1.5 kilometers)

Cross-Section:

Approximately 1,000 square feet (93 square meters)

Geology:

Massive, Fractured Diabase; Groundwater Inflow Along Discontinuities and in Fractured Zones

Cost:

Approximately $60 Million

Client:

Merco, Inc.

Owner:

New Jersey Transit Authority (NJT)
