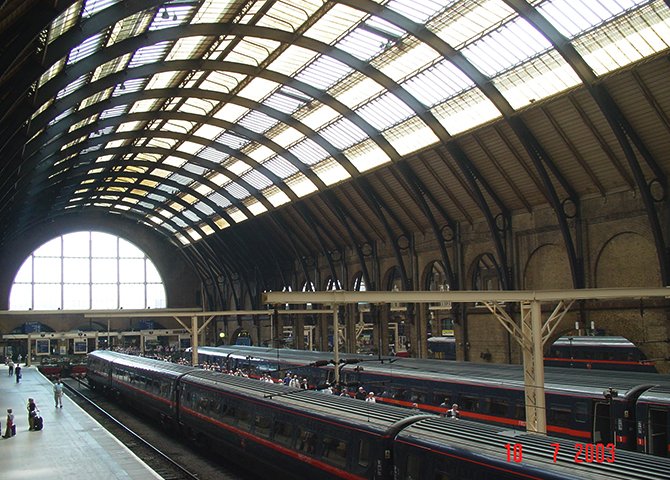

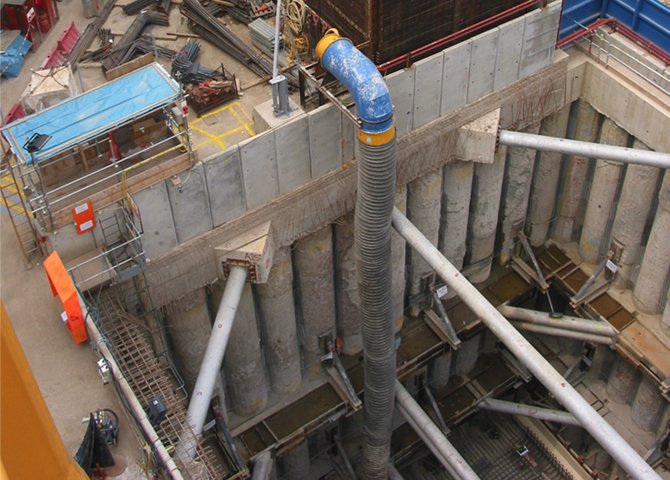

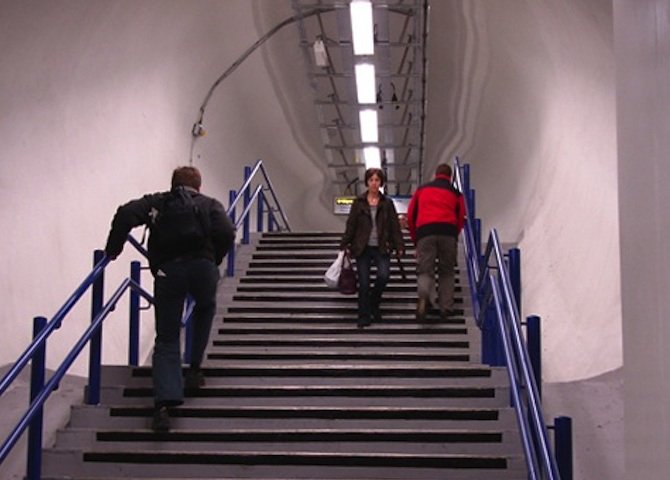

Plans for the upgrade and improvement of three historic London Underground stations called for new pedestrian link, escalator and concourse tunnels above and between the station tunnels. There are historic buildings, an active railway terminal station, and shallow cover above the construction area.

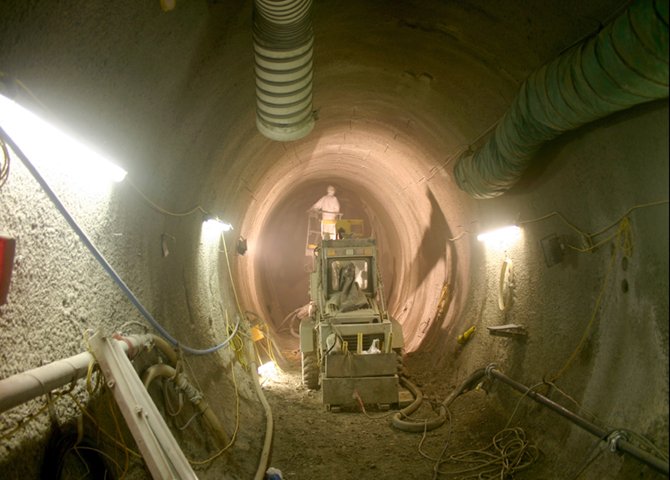

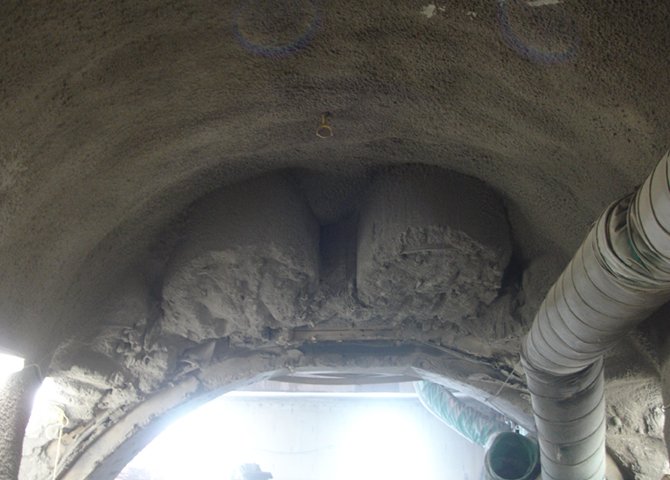

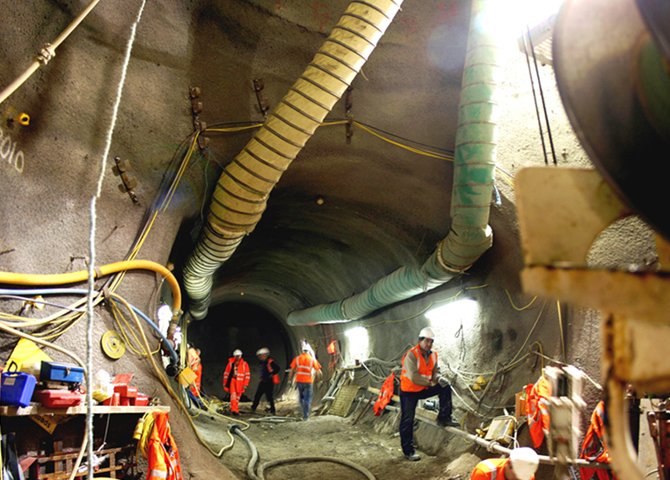

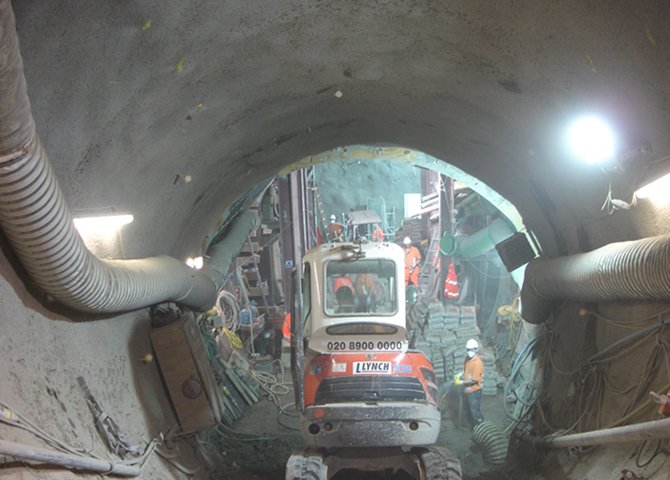

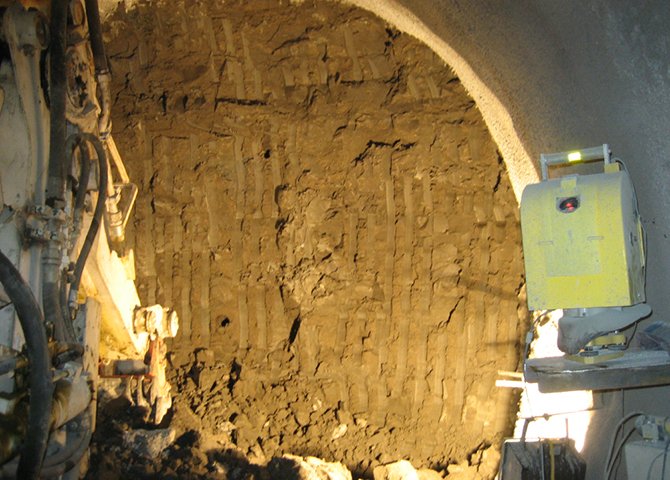

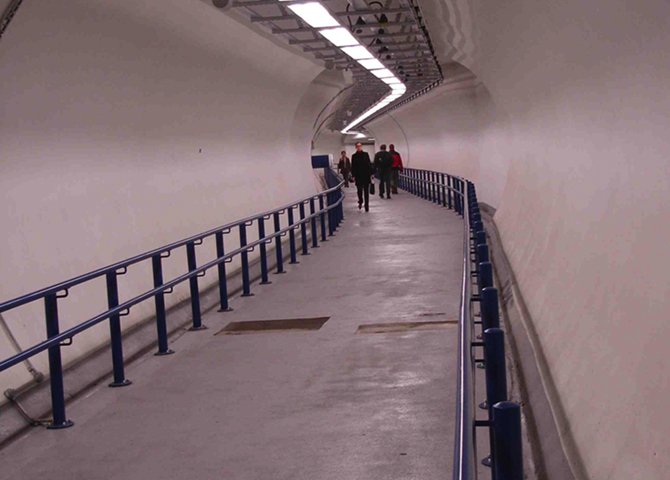

Sprayed Concrete Lining / New Austrian Tunneling Method (SCL / NATM) techniques were employed for the tunnel construction. For settlement mitigation, compensation grouting was used beneath historic buildings.

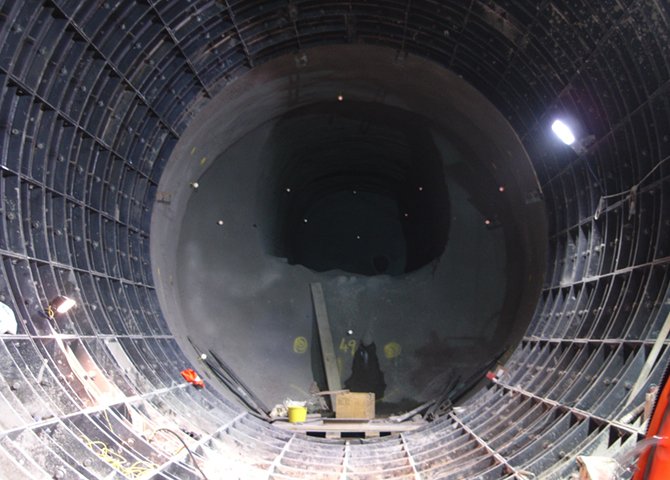

Gall Zeidler Consultants (GZ) provided an independent review of excavation and support systems for the new structures, and further advised on the waterproofing and permanent lining. GZ provided support for contractual and technical decisions and formed part of the site assurance and inspection team.
London, United Kingdom
2002 – 2008
Station Upgrade, Escalators, and Concourse Tunnels
1,500 feet (457 meters)
Up to 880 square feet (82 square meters)
Fill, London Clay, Lambeth Group (Clay); Groundwater Table Above Tunnel Roof Level
Approximately US $130 Million
Metronet Rail SSL
London Underground Ltd.
