Los Bronces Underground Tunnel

Anglo American Sur

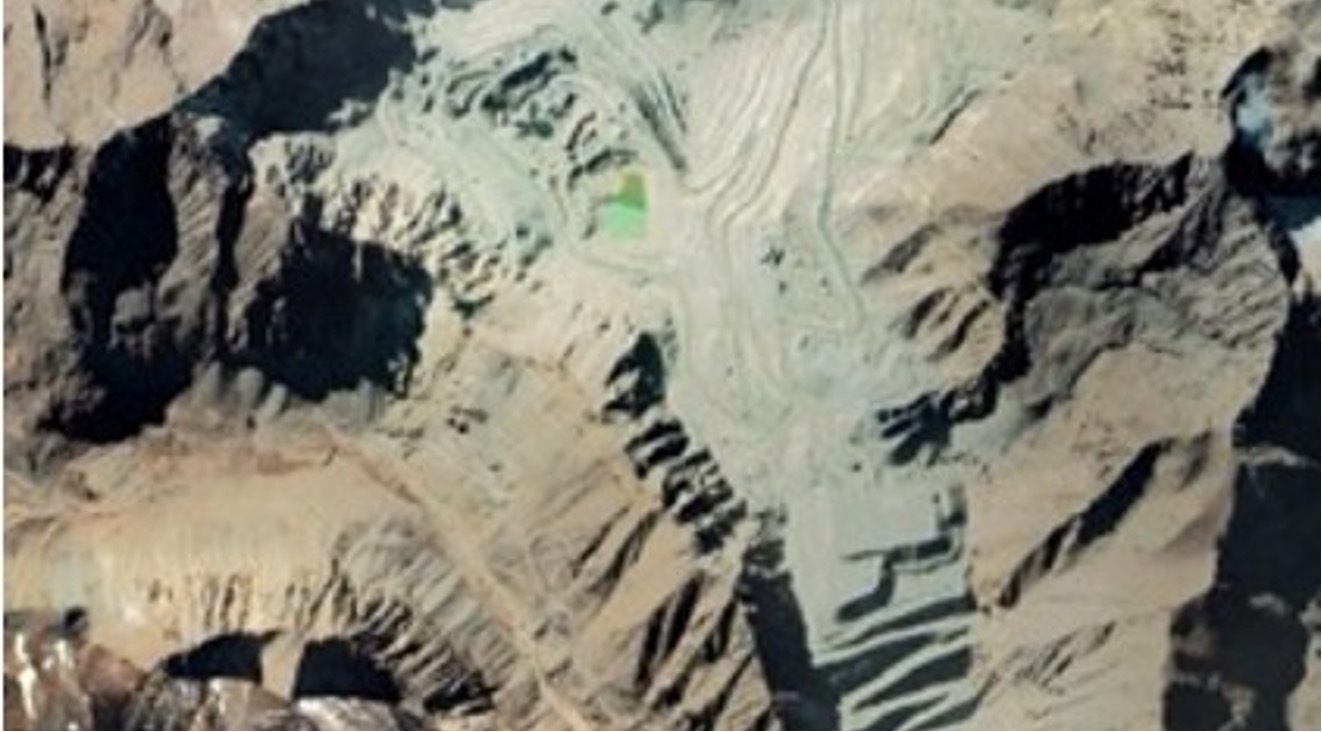

Anglo American Sur (AAS) is in the process of advancing project development studies for the Los Bronces underground (LBUG) project to access the Los Sulfatos Copper deposit, located approximately 65 km northeast of Santiago Chile and approximately 5 km SE of the current Los Bronces mine. Due to environmental concerns, the deposit would need to access the ore body by tunnels extending from the exiting Los Bronces mine. Current project planning envisions the construction of multiple tunnels for access, mucking, ore conveyances, and ventilation purposes.

Expert Consulting Services:

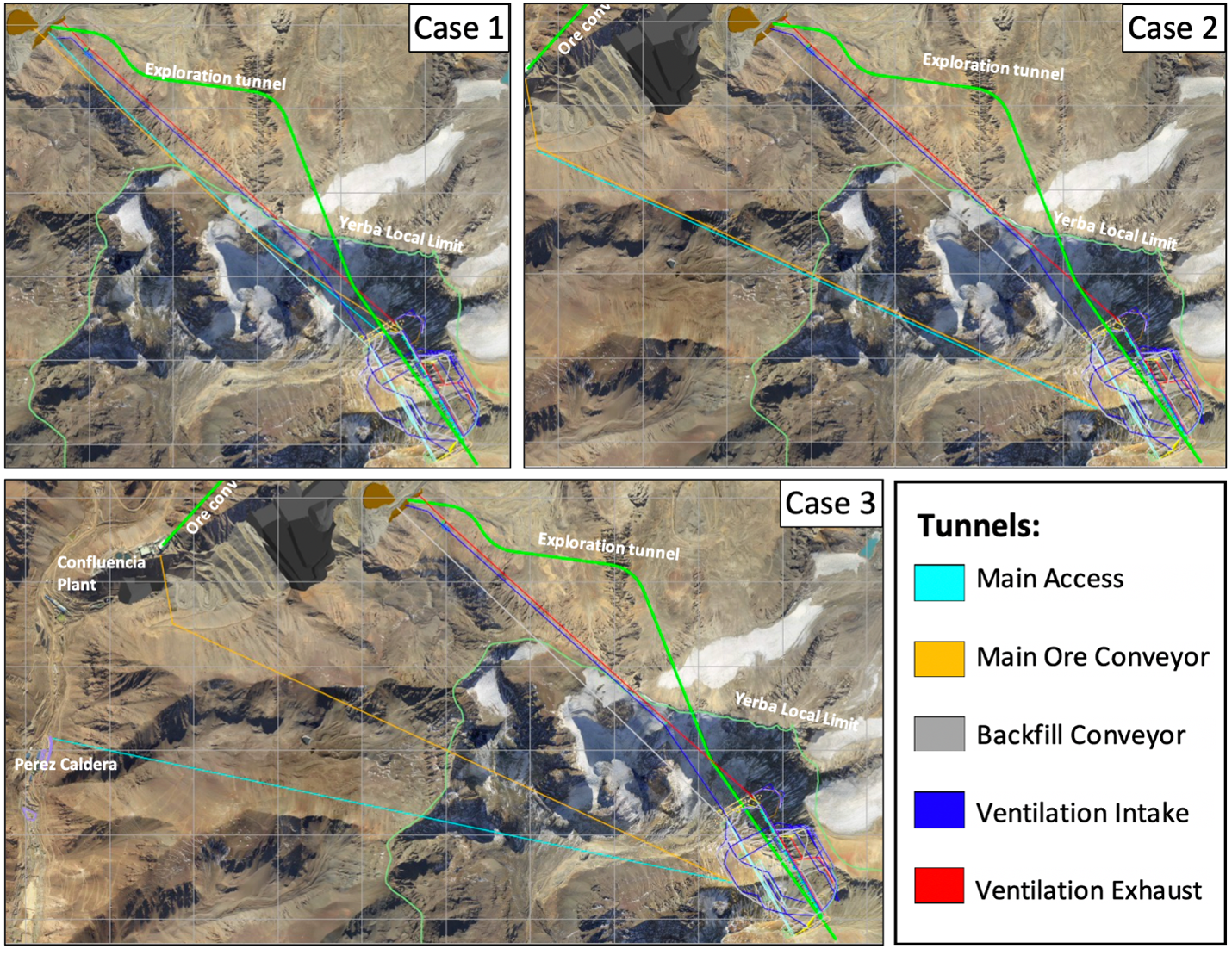

Gall Zeidler Consultants (GZ) was retained by AAS during the Pre-Feasibility A Stage (PFSA) to assist in the evaluation of the developed tunnel options, to provide recommendations concerning the tunneling methods to be used, and to provide recommendations for future project advancement. A comprehensive review of NATM and TBM technologies was performed to optimize the development of the access tunnels while minimizing capital investment costs and managing the expected geologic and hydrogeologic conditions during tunneling. These studies were used to further advance the project development and to more clearly define possible tunneling alignmnent. Gall Zeidler Consultants is currently involved in the project on an on-call basis.

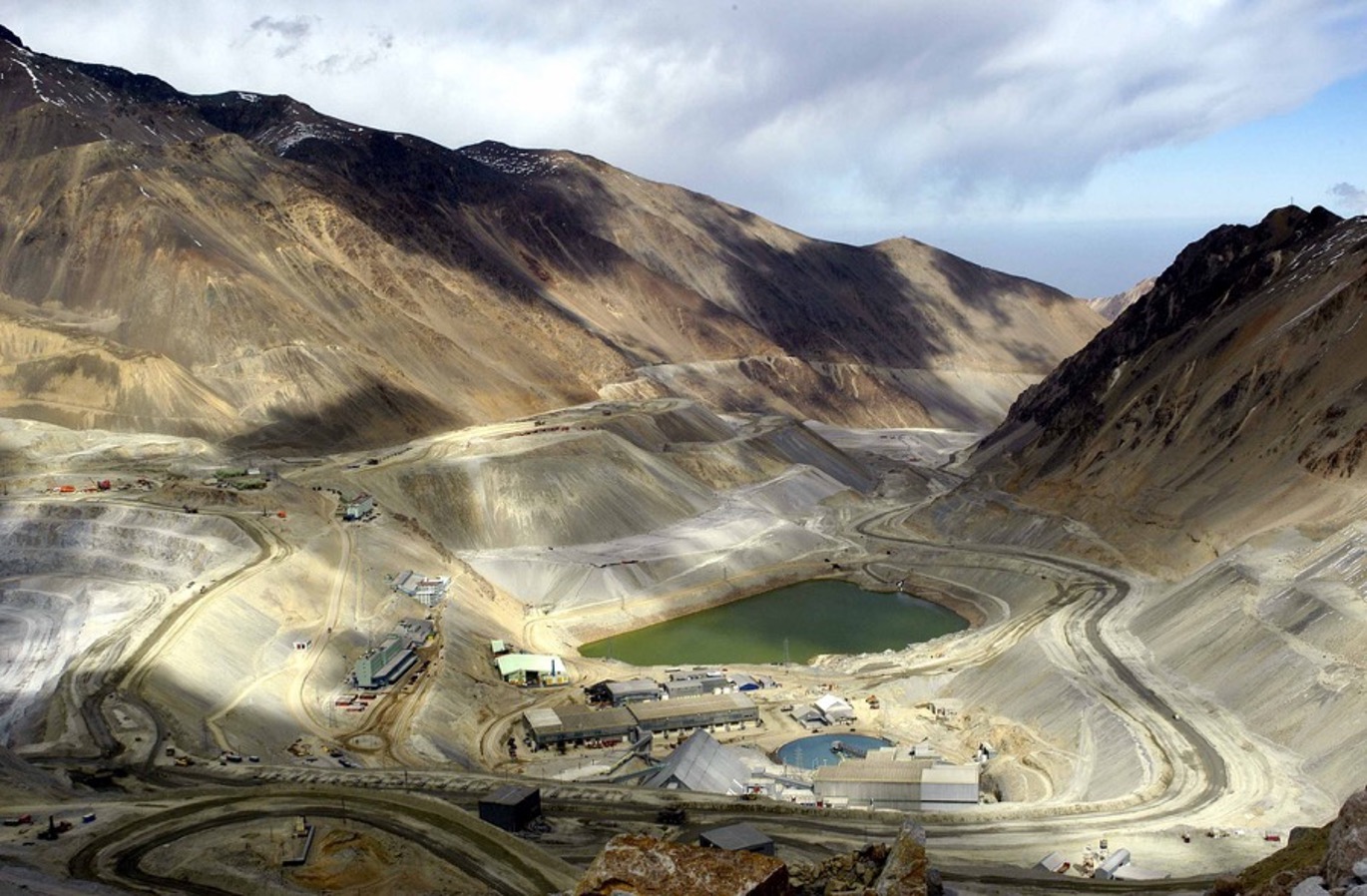

Los Bronces Mine, Valpariso and Metropolitana Regions, Chile


2020 - Present


TBM Tunnel


8 km (4.5m diameter)


Large Tunnel (14.3 m x 9 m) and slightly smaller Tunnel (12.9 m x 8.1 m)


Farellones and San Francisco formations consisting primarily of Andesite, Diorite, and tourmaline Breccia
